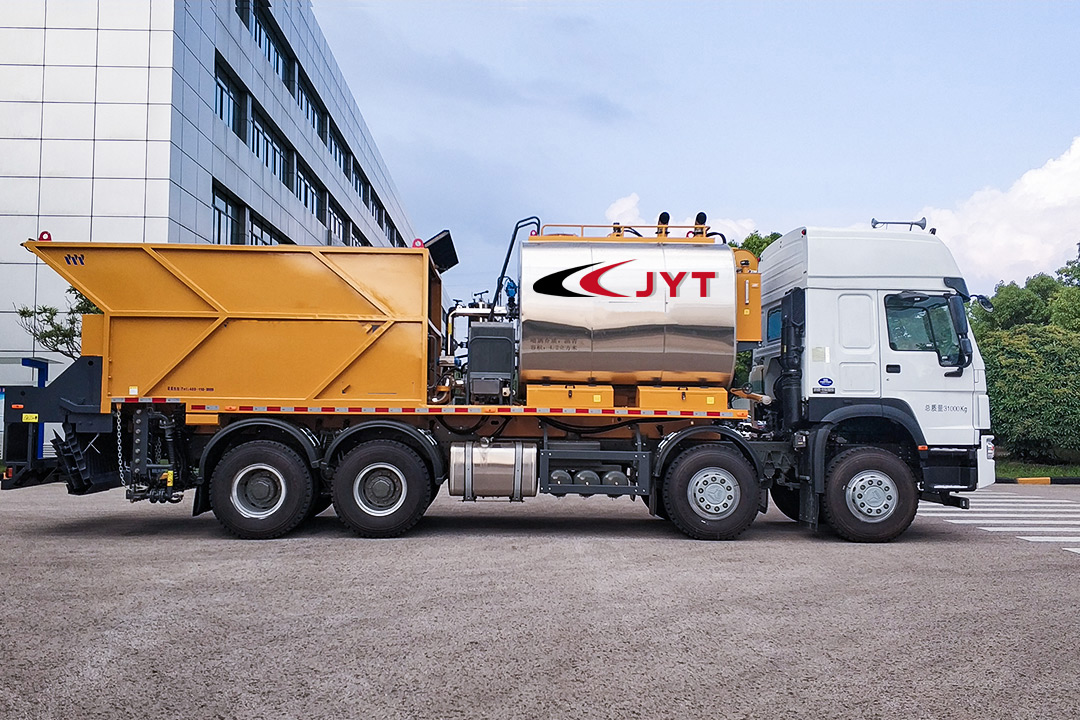

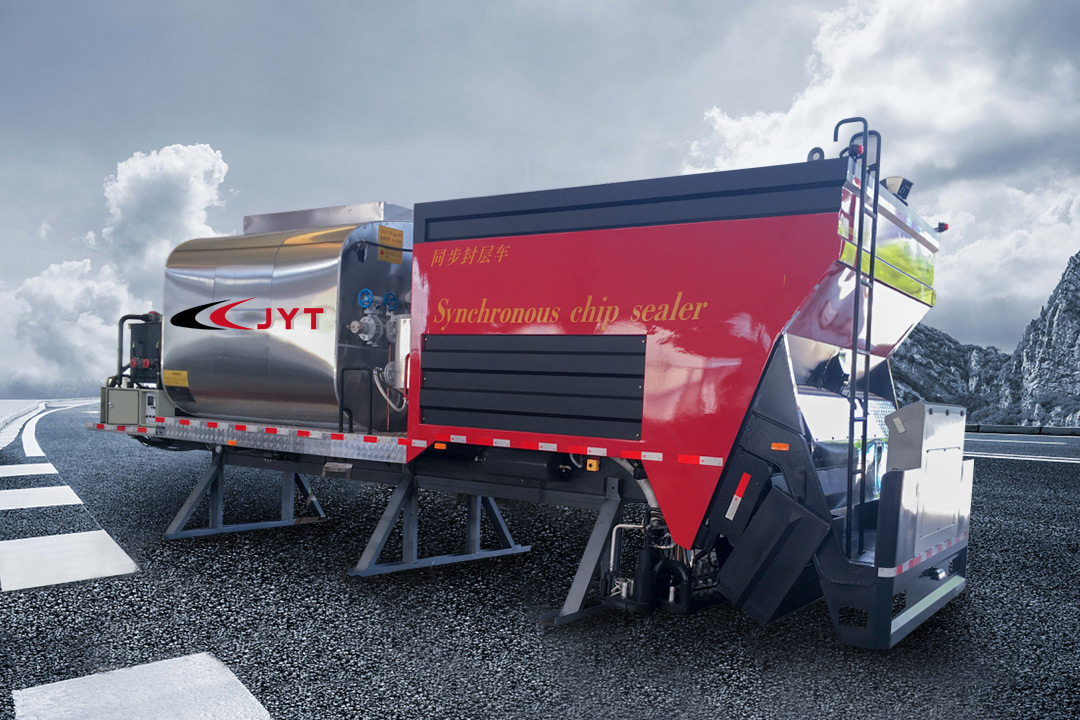

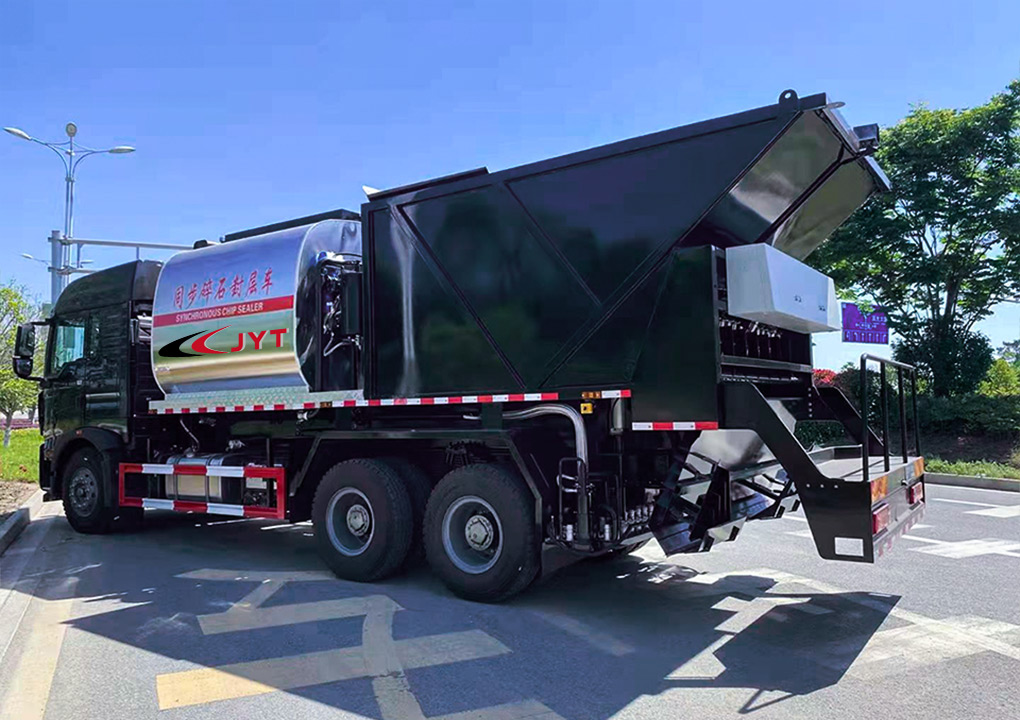

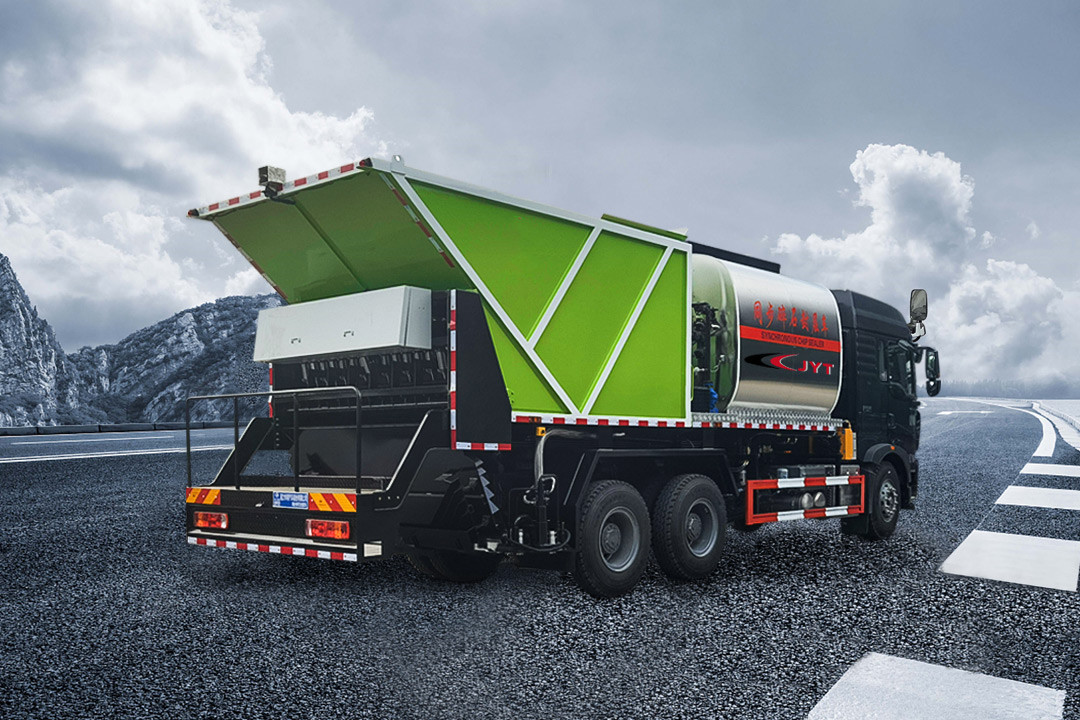

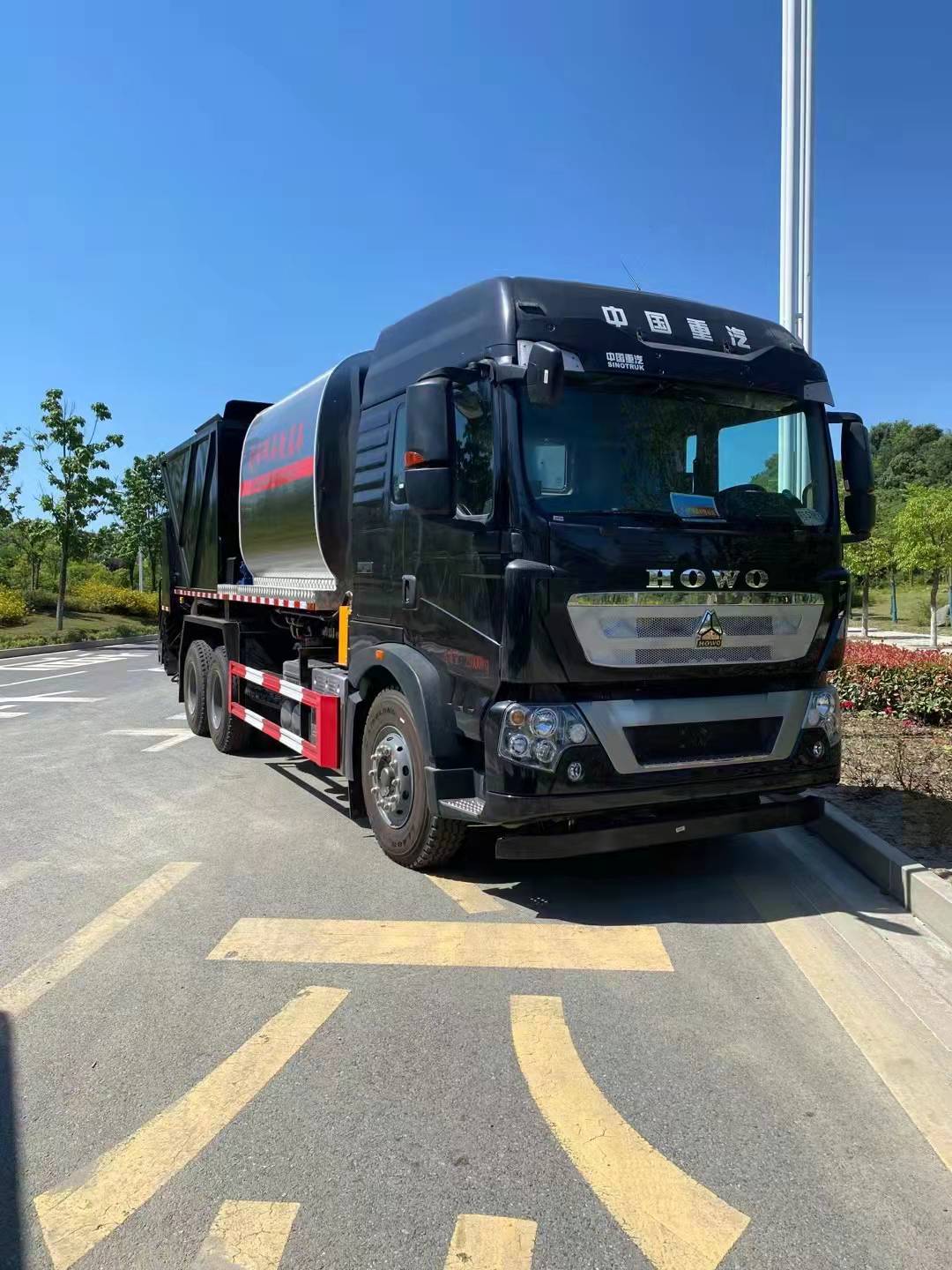

synchronous chip sealer mainly consists of chassis, asphalt spray system, chip spreading system, air circuit system,water circuit system,control system,radar speed measurement system, power supply system and mixing system.
This equipment takes the power from chassis engine,with stable and environmental performance;It adopts rotary paddle switch and CCD camera in the inner lifting double-hopper,which can monitor and alarm the level of aggregates in the hopper to improve the bearing capacity,stability and reliability.It can realize operation in height-limit condition,such as bridges and culverts.It adopts camber chip distributing device to improve the evenness.It uses stable dedicated controller to control the whole electric system,rear high-definition infrared cameras monitor the whole operation,which improve the working environment and efficiency.
Synchronous chip sealer is kind of special equipment used for chip sealing of road surface, bridge waterproof and lower seal coat. It realizes that asphalt binders spray and aggregates spreading perform synchronously, which makes full touch of asphalt binders and aggregates to realize their maximum cohesive performance.
No | Name | Unit | 5311TFC | 5250TFC |
Tank volume | L | 8500 | 6000 | |
Hopper volume | m3 | 14 | 10 | |
Spray width | m | 4200 | 4000 | |
Asphalt Spray volume | kg/m2 | 0.2-3 | 0.2-3 | |
Aggregates Spray volume | L/㎡ | 2-22 | 2-22 | |
Asphalt Spray precision | - | 1% | 1% | |
Aggregates Size | mm | 3-30 | 3-30 | |
Spray Media | - | Hot (modified) asphalt, cutback asphalt, emulsified asphalt, asphalt | Hot (modified) asphalt, cutback asphalt, emulsified asphalt, asphalt | |
Heat-up method | - | Auto temperature control heat oil | Auto temperature control heat oil | |
10 | Asphalt Heat-up speed | ℃/h | 20 | 20 |
11 | Best operation speed | km/h | 3-6 | 3-6 |
12 | Emission standard | - | Euro3-5 | Euro3-5 |
13 | Chassis engine power | kW | 276/380 | 249/336 |
14 | Total weight | kg | 31000 | 25000 |
15 | Asphalt mixing speed | r/min | 100 | 100 |
16 | Dimensions | mm | 1190×2500×3860 | 10500×2500×3450 |
