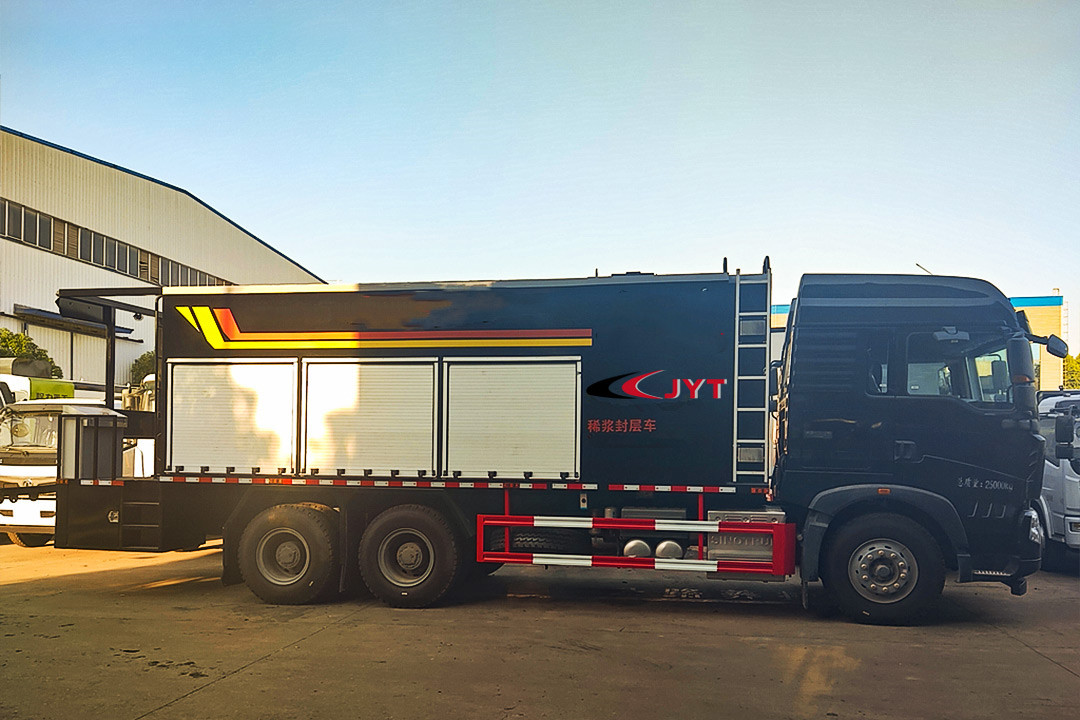

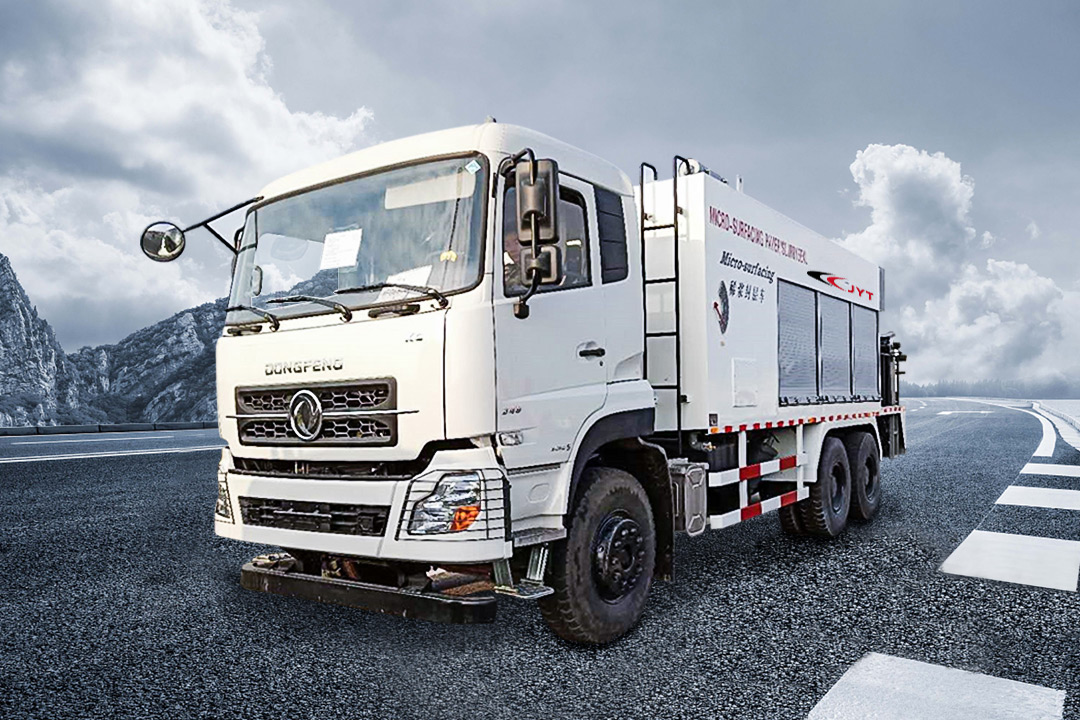

slurry seal truck(slurry paver ) consists of chassis feeding system （aggregates feeding subsystem, emulsion feeding subsystem, water supply subsystem, fillers feeding subsystem and additive feeding subsystem）、mixing system、paving system、power system、control system etc.

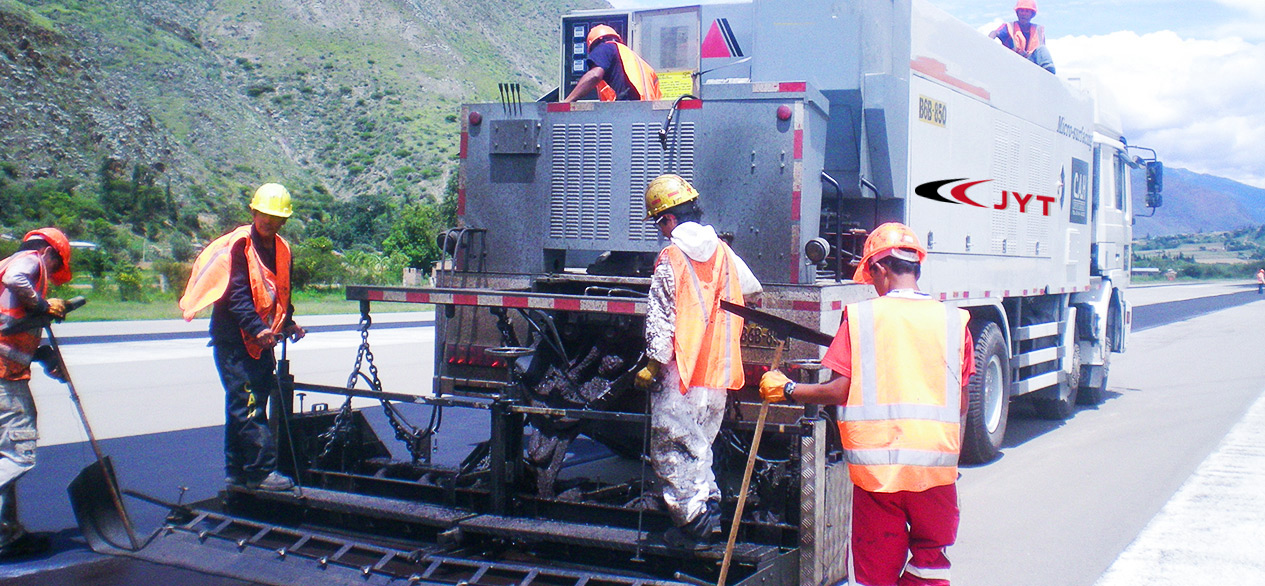

slurry seal truck (slurry paver ) is mainly applied to treat the pavement diseases like friction resistance reduction, cracks and ruts for improving its performances of anti-slide and waterproofing, evenness and travelling comfort. This equipment can be widely used in construction of slurry sealing, modified slurry sealing and microsurfacing. This equipment is a new type of patented product for road maintenance at international advanced level on the basis of foreign advanced technologies. This product is tested and optimized in constructions for many years, which is the ideal machinery for slurry sealing and micro-surfacing constructions.
Model | 5310TFC | 5254TFC |
Dimension | 11800×2500×3800 | 10450×2500×3500 |
Tank &hopper bin capacity | 4+4+12m³hopper | 3.5+3.5+10(m³)hopper |
Paved width | 2.5~4.3meter adjustable | 2.5~4.3meter adjustable |
Wheelbase chassis | 1800+3825+1350 | 4325+1350 |
Chassis request | 8*4 truck chassis | 6*4 truck chassis |
Auxiliary engine power | 150HP | 100HP |
