Brief introduction

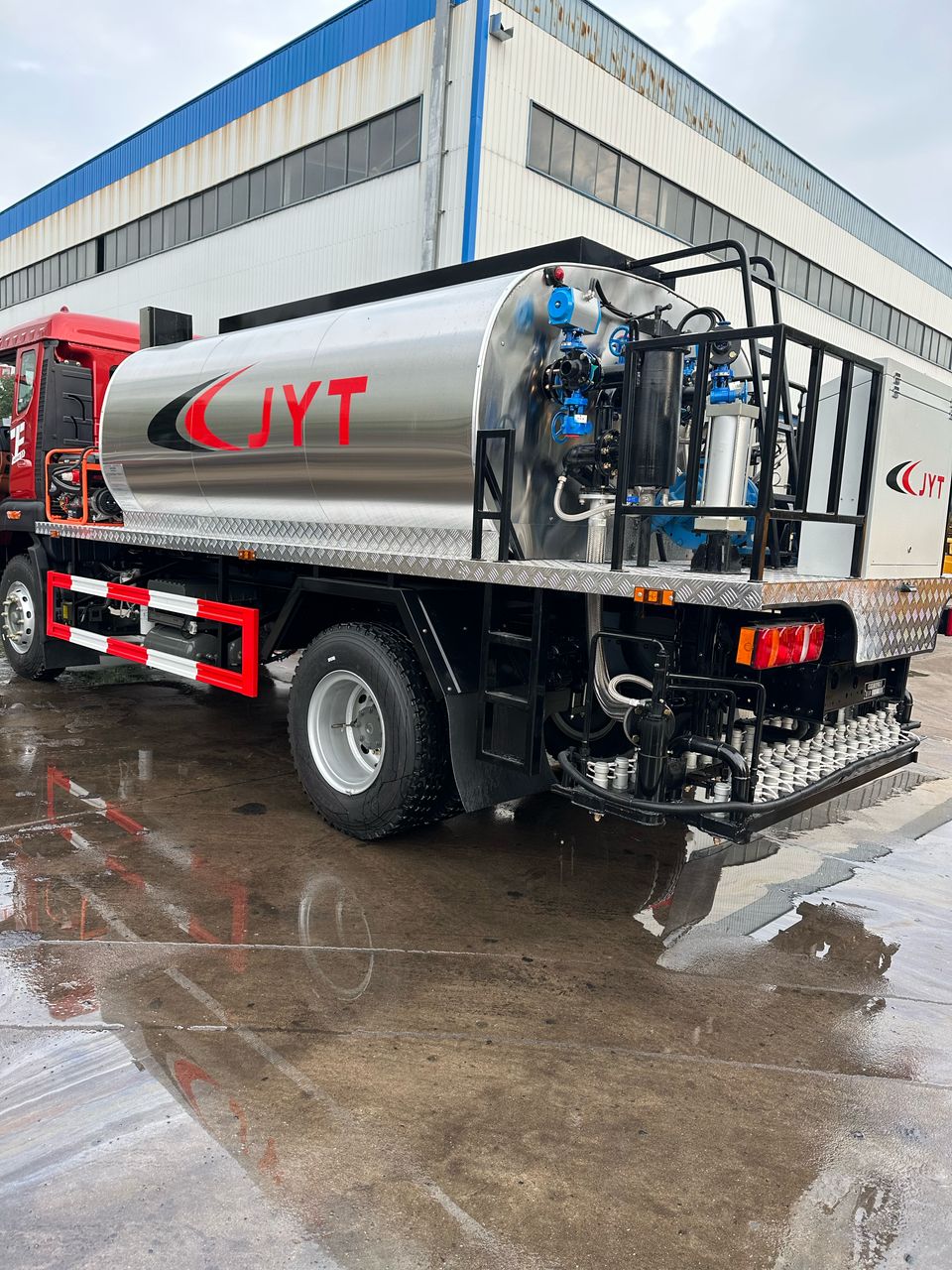

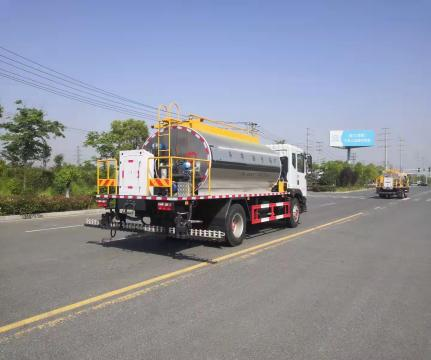

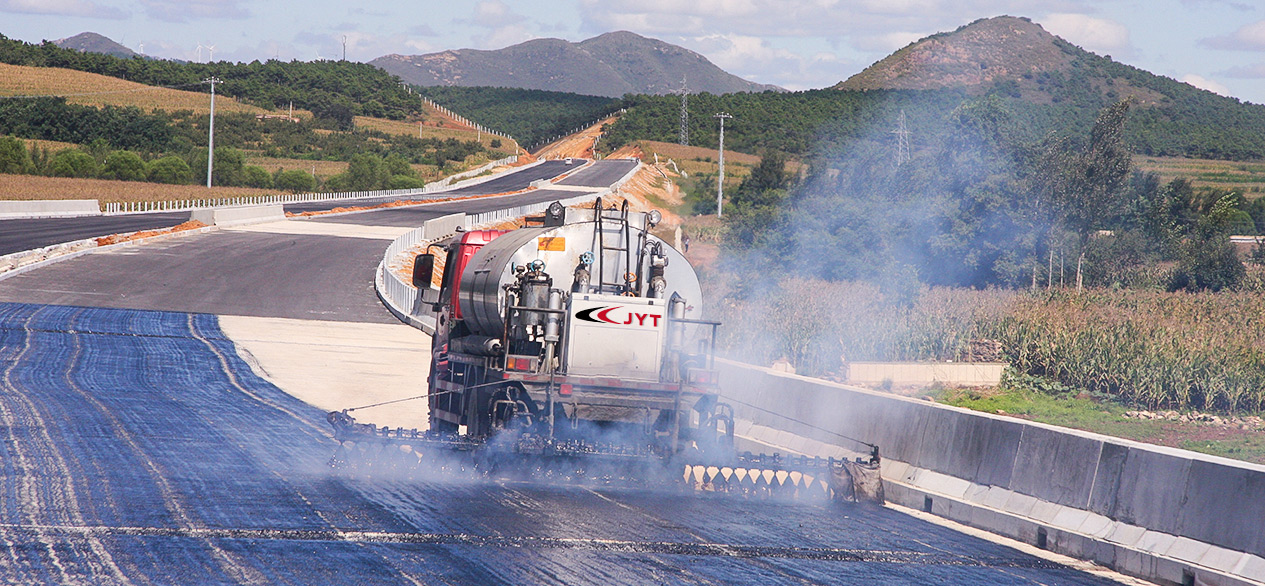

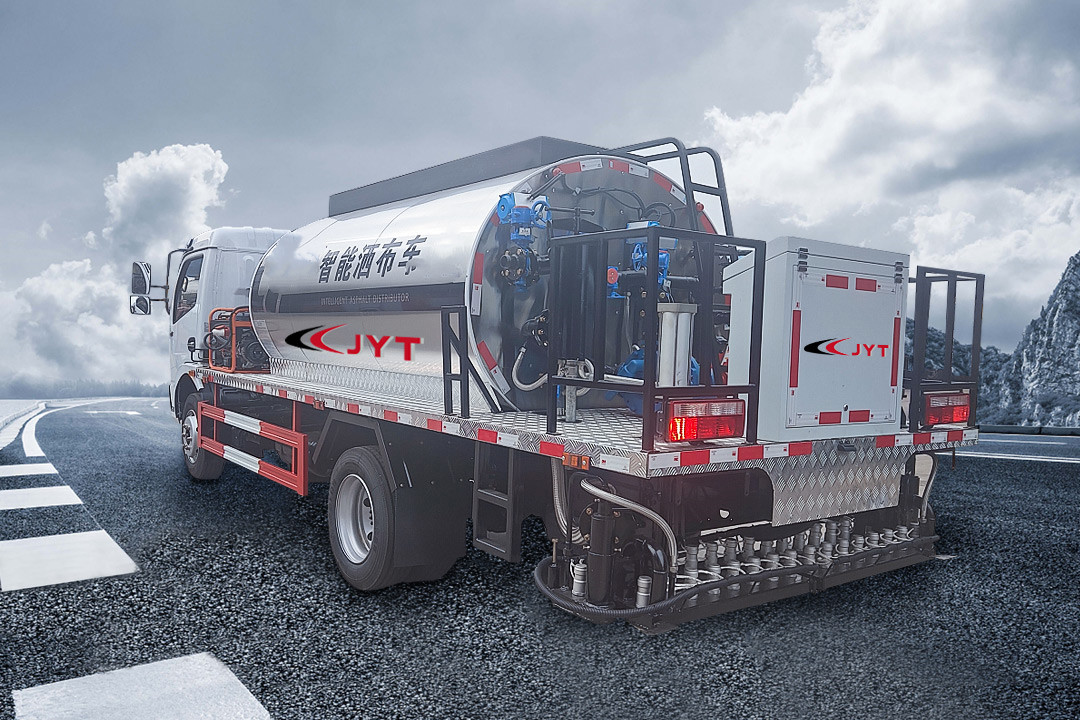

Asphalt distributor is one product for doing tack seal and penetration layer seal jobs, which widely used in all levels road contruction layer , like urban village road and Highway roads layers.
Note: all following products can be supply upper structute type.
Specifications:
Model | 5090GLQ | 5161GLQ | 5251GLQ |
I. Chassis | |||
Chassis model | DONGFENG 4X2 | DONGFENG 4X2 | HOWO 6X4 |
GVW (kg) | 9000 | 16000 | 25000 |
Engine | Cummins B140 33
| Cummins B170 33
| WD615
|
Power (HP) | 140 | 190 | 290 |
II. Tank and spray | |||
Tank capacity 罐体容量 | 5000L | 8000L | 12000L |
Material | Q235 carbon steel coated with stainless steel | ||
Insulate thickness | 50-100mm Fiberglass | ||
Asphalt spray rate (L/m2) | 0.25-3.0 | ||
Nozzles number | 34 | 39 | 48 |
Spray width(mm) | 4500 | 6000 | 6000 |
III. Hydraulic and transmission system | |||
Power take off | from the gearbox | ||
Hydraulic pump | CBQ/G550 | CBQ/G550 | CBQ/G563/CFH |
Hydraulic motor |
Northman | ||
Asphalt pump | QGB680 | QGB680 | QGB950 |
IV. Control system | |||
PLC | Siemens
| ||
Display | touch screen | ||
Nozzles control | Each pneumatic cylinder control by solenoid valve | ||
V. Heating system | |||
Generator | 5KW | ||
Heating transfer oil Tube | Transfer the heating in tank, asphalt pump and spray bar | ||
Temperature control | E5AZ Omron, Japan
| ||
Burner | RIELLO G20, Italy
| ||
