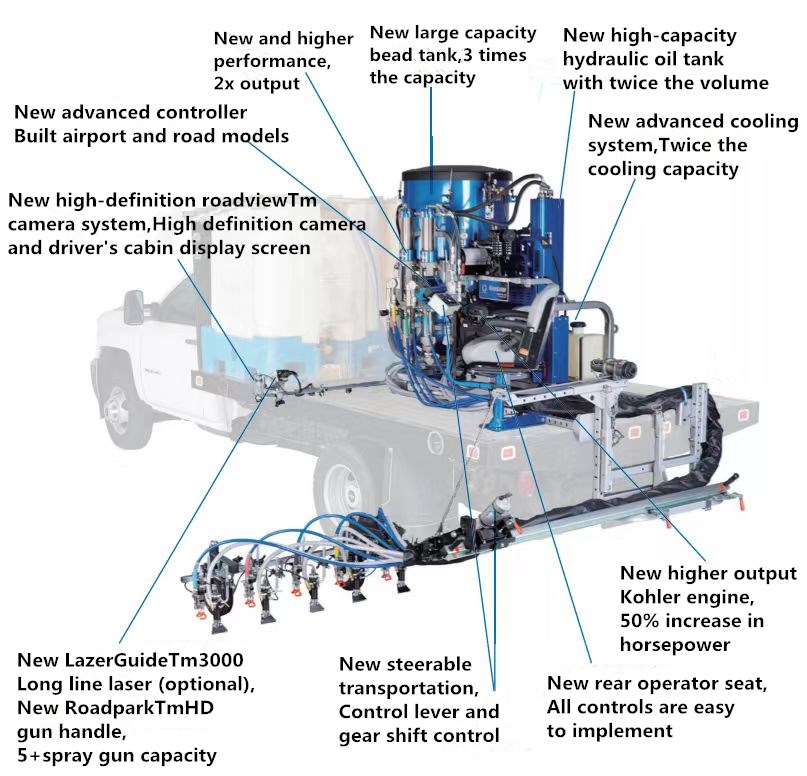

RoadLazer RoadPak System is a hydraulic striping system built for the professional road striping contractor. With the RoadPak airless striping system you can achieve extremely accurate lines at highly productive speeds - up to 10 mph (16 km/h).
Product highlights:
· 8 Ready to stripe RoadLazer RoadPak Systems
· Modular striping system offers unlimited striping possibilities
· 1 or 2 pump RoadPak for superior performance and crisp, clean stripes
· Optional RoadView Camera System for optimum forward viewing and alignment from the cab for one person striping
· Double-acting paint spray gun has complete chemical compatibility and highest flow rates available
· Double-acting bead spray gun has better on/off control and eliminates chattering often found in competitive guns
· Optional RoadView Camera System provides optimum forward viewing of existing or new lines
· Exclusive Graco displacement pumps for long life and low maintenance. 100% chemical compatibility with all traffic paints
· Spray gun boom arm for straighter lines and more accurate curves. Easily moves from centerline to edge-line
Technical parameter
Max. Flow：38.0lpm
Max. Working pressure：2900psi(200bar)
Max. Nozzle：5+
Max Tips：065
Maximum air flow CFM：13(100psi)
Glass beads tank：612kg(1350 pound)
Engine power：26.5HP
Hydraulic oil tank：15 liter(4gallon)
Glass beads pressure：60psi(4.1bar)
