Brief introducion

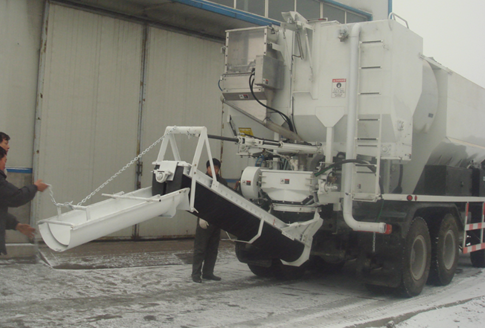

Movil concrete plant is unique technology to produce concrete mixture in site in China, the capacity can 24m3/h ,which can replace the concrete mixing plant and mixer truck. and input cost reduce 70%.
And it can sell around 60units each year.
| Item | Data |
| chassis type | Sinotruk 6*4 3axle Tier5 chasis |
| Engine | 310HP |
| Overall size | 9650*2500*3800mm |
| Capacity | 24m3/h |
| Power | diesel engine 88kw |
| Aggregates Hopper | 11m3 |
| cement | 3.2m3 |
| water tank | 1900L (Polyethylene |
| Additive | 160L |
| Control method | control panel at rear |
| Overall weight | 14500kgs |
| Upper structure size | 5347*2540*3404mm |
| ship by | LCL/RO-RO |
