Brief introduction
1. This product works from asphalt heating insulation tank, high pressure asphalt pump discharging system, diesel engine driven clutch separator drive asphalt pump, hot oil circulation pump, hot oil heating inside of tank, Asphalt preheating external asphalt pump and pipeline, air cleaning system for pipeline and nozzle, and the overall compact structure, reasonable layout, easy to operate.
2) Sprayer trailer inside the tank is equipped with hot air heat pipe and hot oil, built-in rock wool board insulation, carbon steel plate covered, using the hot air blow hot oil and do circulation heating asphalt and pipeline to improve the efficiency of heating, all pipes, pump head adopts inner thermal oil heating method, avoid pipeline asphalt temperature is too low, the equipment integrate storage, transport spraying , It is an ideal product for road maintenance site construction.
3) This product is consist of combustion chamber, burner, hot oil pipes, diesel engine, clutch, hot oil circulation pipes, used for asphalt pump, asphalt pump, air cleaning part, mainly composed of a single cylinder pump head, air storage tank, used for pipe, pump head, hand spray pistol.
4) Heating part, this part is composed of diesel burner, operating controller, diesel tank, and combustion chamber to increase the temperature of hot oil for the tank asphalt heating.
Basic parameter

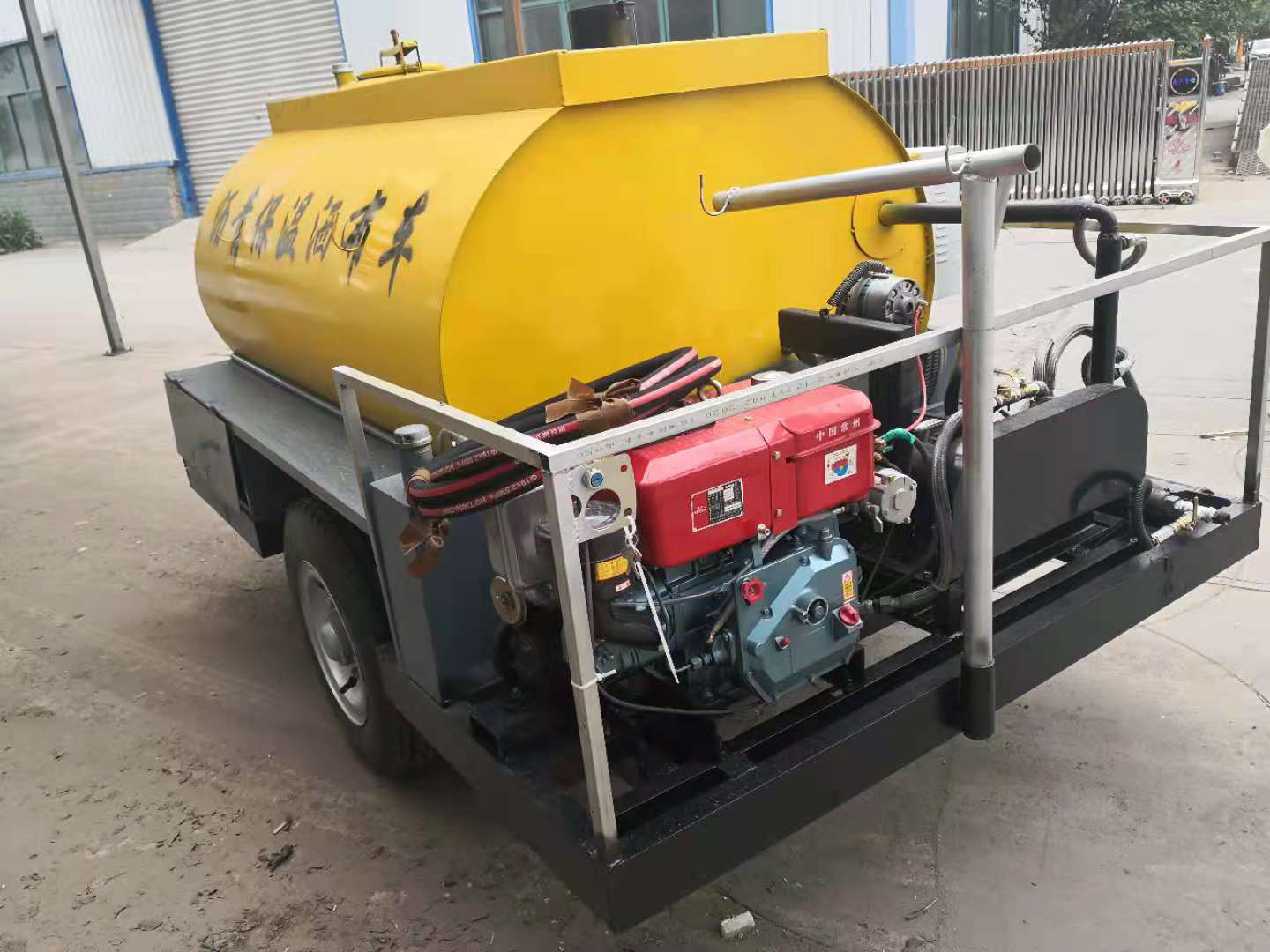

1000L emulsion sprayer trailer
1000Liters tank or 2000liters tank
Oval shape tank
With subframe，install freely
50cm manhole with filter
RIELLO diesel burner
Attached 10hp engine
With asphalt pump spray system
Spray bar system, standard : 1.7meters, optional 2.5meters ,folded design, slipknot two sides, inner heating system,14pcs manual nozzle,
Resistance high temperature Manual sprayer pistol,12meters
the whole equipment supply cleaning system for tank and sprayer
Dual layer insulation，yellow paint
Technical data
Item parameter
tank 1000 L，insulation layer
Overall size 3600*1700*1800mm
temperate range ≤ 170℃
asphalt pump flow 6m3/h
engine Changcai, 10Hp
Burner RIELLO 100000Kcal, oil consumption 5kg/h
Manual sprayer pistol 12 meters
Nozzle sprayer diameter 0.5-1.5meter
Spray bar( can be optional)
